Posted on July 04, 2016 by Dr Peter Harrop

Hybrid and electric systems R&D at the U.S.-DOE

Autonomous Vehicles Land, Water, Air 2017-2037
This paper first presented by the US Department of Energy at EVS29 Montreal Canada provides an overview of the Fiscal Years (FYs) 2015-2016 Hybrid and Electric Systems (HES) research and development (R&D) activities - with emphasis on its advanced electric drive research -funded by the Vehicles Technologies Office (VTO) of the U.S. Department of Energy (DOE). VTO spearheads the R&D needed for a new generation of electric-drive vehicles, following a comprehensive multi-year research program plan 1. Its subprograms cover electric drive technologies (EDT), advanced batteries, and vehicle systems (VS). Status updates on the hybrid electric systems (HES) program R&D have been regularly provided at prior EVS meetings e.g., 2-4. VTO leverages significant resources to address the technical barriers that prevent the commercialization of electric drive vehicles (EDVs). VTO works with automakers and other industry stakeholders through partnerships such as the U.S. DRIVE (United States Driving Research and Innovation for Vehicle efficiency and Energy sustainability) to fund high-reward/high-risk research and enable improvements in critical components to enable more fuel efficient and cleaner vehicles. As shown in Table 1, there is significant U.S. commitment to HES - and its FY 2016 budget of $166 million is nearly three times the size of its FY 2005 budget.
Table 1: Recent HES R&D Budgets
HES Budget ($, Million)FY 2005
$57.1
FY 2006
$55.6
FY 2007
$72.3
FY 2008
$92.1
FY 2009
$122.7
FY 2010
$142.3
HES Budget ($, Million)FY 2011
$145,8
FY 2012
$164.9
FY 2013
$156.4
FY 2014
$148.3
FY 2015
$140.1
FY 2016
$166.4

Goals and technical barriers

The commercialization of plug-in electric vehicles (PEVs) by making them cost-competitive with conventional internal combustion engine-powered vehicles requires reducing the production cost of market ready, high-energy, high-power batteries by about 70% in the near-term and that of associated market-ready EDT systems by about 60% in the mid-term (compared with Year 2009 costs). Current technical targets for batteries, developed in collaboration with the United States Advanced Battery Consortium (USABC), are listed in the VTO multi-year program plan 1. Additional performance targets, e.g., those for hybrid electric vehicles (HEVs), electric vehicles (EVs) and ultracapacitors are available at the website of the USABC 5 and are also listed in the VTO Energy Storage R&D annual progress report 6. For the EDT and VS subprograms, the technical targets for peak power, costs, etc. can be found in the corresponding sections of the VTO multi-year program plan 1.

Strategies

DOE works with industry, academia, and national laboratories to support research on next-generation transportation technologies, including batteries and EDTs. In May 2011, it announced a cooperative research effort comprising of, in addition to DOE itself, the US Council for Automotive Research (which included automakers Ford Motor Company, General Motors Company, and Chrysler Group), Tesla Motors, and some representatives of the electric utilities and the petroleum industry. This cooperative effort is titled
U.S. DRIVE and is aimed at developing public-private partnerships to fund high-risk-high-reward research into advanced automotive technologies. VTO utilizes a multi-pronged approach involving both near-term and long-term measures to meet its PEV goals. An example of its near-term measures includes its emphasis on clean energy initiatives like the 10-Year Vision Plan entitled "EV Everywhere" Grand Challenge whichfocuses on the domestic production of cost-competitive PEVs. In the long-term, VTO funds topic-specificR&D at national laboratories and cost-shares technology development by industry via development
programs.

The EV Everywhere Grand Challenge

The "EV Everywhere Grand Challenge" is a DOE Energy Efficiency and Renewable Energy (EERE) office initiative for facilitating the market feasibility of PEVs, which envisions enabling U.S. innovators to rapidly develop and commercialize the next generation of technologies to achieve levels of cost, range, and charging infrastructure necessary for widespread PEV deployment. VTO collaborates with outside stakeholders and the DOE offices of Science, Electricity, and the Advanced Research Projects Agency-Energy (ARPA-E). The EERE-produced EV Everywhere Blueprint 7 describes the steps needed to meet its overall goals as well as additional technology-specific aggressive "stretch goals" developed in consultation with stakeholders across the industry. Figures 1 and 2 summarize the advancements necessary for the commercial feasibility of electric drive technology and batteries, respectively, in EDV applications.

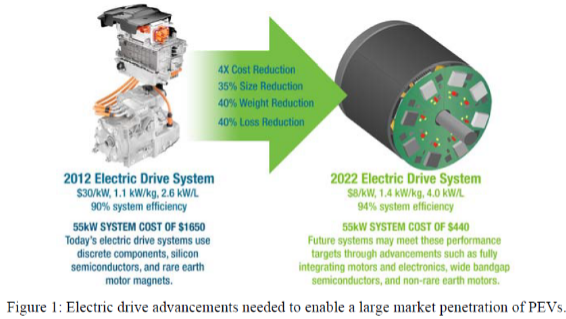

Electric Drive Technologies (EDT)

The EDT subprogram within VTO fosters the development of technologies that will significantly improve efficiency, costs, and fuel economy in support of the efforts of the U.S. DRIVE partnership. EDT provides support and guidance for many cutting-edge automotive technologies. A key requirement for making advanced vehicles practical is providing an affordable electric traction drive system (ETDS), by attaining weight, volume, efficiency, and cost targets for its power electronics (PE) and electric motor (EM) components. EDT R&D is focused on developing revolutionary new PE, EM, as well as other ETDS technologies that will leapfrog current technologies, leading to a lower cost and better efficiency in transforming battery energy to useful work. It is aimed at achieving a greater understanding of (and improvements in) the way the various new components of tomorrow's automobiles will function as a unified system to improve fuel efficiency. Its areas of development include: novel traction motor designs that result in increased power density and lower cost; inverter technologies that incorporate advanced wide bandgap (WBG) semiconductor devices to achieve a higher efficiency while accommodating higher temperature environments and delivering higher reliability; converter concepts that leverage higherswitching- frequency semiconductors, nanocomposite magnetics, higher-temperature capacitors, and novel packaging techniques that integrate more functionality into applications offering reduced size, weight, and cost; new onboard battery charging electronics that build from advances in converter architectures for decreased cost and size; more compact and higher-performing thermal controls achieved through novel thermal materials and innovative packaging technologies; and integrated motor-inverter TDS architectures that optimize the technical strengths of the underlying PE and EM subsystems. Table 2 contains an overview of the current projects in each of the EDT task areas. More detailed information on individual EDT projects is found in the EDT Annual Progress Report 8.

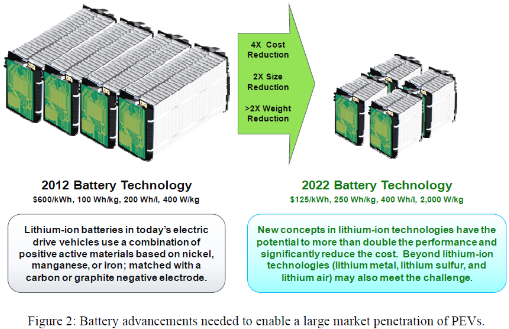

Advanced Batteries R&D

The objective of the VTO battery R&D subprogram is to develop batteries which enable a large market penetration of electric vehicles. It focuses on overcoming technical barriers so as to obtain: (1) a significantly reduced battery cost, (2) increased battery performance (power, energy, and durability), (3) reduced battery weight & volume, and (4) increased battery tolerance to abusive conditions such as short circuit, overcharge, and crush. Current battery technology performs far below its theoretical limits. For example, in the near-term, with existing lithium-ion technology, there is an opportunity to more than double the battery pack energy density (from 100 Wh/kg to 250 Wh/kg) by using new high-capacity cathode materials, higher voltage electrolytes, and high capacity silicon or tin-based intermetallic alloys to replace the graphite anodes. Much more R&D is needed to achieve the performance and lifetime requirements for their use in PEVs. The VTO battery R&D subprogram includes five inter-related and complementary program elements: advanced battery development, battery testing, analysis, and design, applied battery research (ABR), manufacturing and process development, and advanced battery materials research (BMR).
Table 2: An overview of EDT research projects FY 2015 (from [$])
Power electronics
R&D
Inverters
Wide band gap technologies
MOSFET technology
Innovative traction design
Power electronics thermal management
Cost analysis
On-board charging
Capacitors
ORNL, GM
ORNL (2 projects), APEI
Cree Inc
ORNL, University of Colorado, Boulder
NREL
Sigma Technologies
Delta Projects
ANL, GE
Benchmarking,
testing and analysis
Benchmarking
Supply chain analysis
ORNL, NREL
Synthesis Partners
Advanced packaging R&DORNL, NREL
EDT materials R&DORNL
Electric motor R&D
Non-rare earth motor
Motor design
Electric motor thermal
Management
ORNL, GE, UQM Technologies, Ames Lab
ORNL, University of Wisconsin, Madison
NREL
The Advanced Battery Development program element's goal is to support the development of a domestic advanced battery industry whose products can meet EDV performance targets. Such R&D focuses on, for example, the development of robust battery cells and modules to significantly reduce battery cost, increase life, and improve performance. Such R&D takes place in close partnership with the automotive industry, through a cooperative agreement with the USABC. The collaboration with USABC has resulted in developing battery and ultracapacitor requirements 5, 10 and test procedures 11, 12, and 13 for various vehicle types. In FY 2015, the USABC supported 9 cost-shared contracts with developers to further the development of batteries for PEVs and HEVs. In addition to co-funding USABC projects, DOE also often directly supports battery and material suppliers via contracts administered by the National Energy Technology Laboratory (NETL). In FY 2015, NETL managed 20 battery R&D contracts.

Electric Vehicle Energy Harvesting/Regeneration 20
In the Battery Testing, Analysis, and Design program element, which complements the battery development program element, high level projects are pursued in such areas as performance, life and abuse testing of contract deliverables, and other activities. Battery technologies are evaluated according to USABC Battery Test Procedures. The manuals for the relevant PEV and HEV applications are available online 11, 12, and 13. Benchmark testing of an emerging technology is performed to remain abreast of the latest technologies.

The Applied Battery Research (ABR) program element is focused on the optimization of next generation, high-energy lithium-ion electrochemistries that incorporate new battery materials. It identifies, diagnoses, and mitigates issues that impact the performance and lifetime of cells made from these advanced materials. It investigates the interaction between cell components (cathodes, anodes, electrolytes, binders, conductive additives, and separators) as they impact performance and life.

The Battery Manufacturing and Process Development program element complements ABR and involves R&D at the national labs on systematic material engineering and customized scaled processes to accomplish kilogram-level high quality material production, in-line analysis methods of quality control to detect electrode flaws and contaminants, and new techniques more amenable to high-throughput manufacturing. It also includes manufacturing process activities in partnership with industry.

Solid-State and Polymer Batteries 2017-2027
The Advanced Battery Materials Research program element addresses fundamental issues of materials and electrochemical interactions associated with lithium batteries. It develops new and promising materials, uses advanced material models to discover additional such materials and to predict failure modes and scientific diagnostic tools and techniques to gain insight into why material and systems fail. It also studies issues critical to the realization of beyond lithium-ion technologies, such as solid state technology. Lithium metal systems, lithium sulfur, and lithium air.

Table 3 contains an overview of the projects in each of the battery project areas. More detailed information on individual battery R&D projects is found in the energy storage R&D annual progress report 6. VTO also funds Small Business Innovation Research (SBIR) projects in the battery area, and also maintains coordination in battery R&D across DOE and with other government agencies. It coordinates such efforts with the DOE Office of Science, the DOE Office of Electricity, and the ARPA-E, the Interagency Advanced Power Group (IAPG), the Department of Transportation/National Highway Traffic Safety Administration (DOT/NHTSA), the Environmental Protection Agency (EPA), and the United Nations Working Group on Battery Shipment Requirements. International collaboration occurs through the International Energy Agency's (IEA's) Implementing Agreement on Hybrid Electric Vehicles (IA-HEV), the eight-nation Electric Vehicle Initiative (EVI), and the Clean Energy Research Center (CERC) bilateral agreement between the U.S. and China.
Project AreaProject TopicParticipants
Advanced
battery
development
USABC battery development projectsEnvier Systems, LG Chem Power (2 projects), Imprints, Seeo, Xerion ABC, Maxwell Technologies, Saft, AMTEK Research
Advanced lithium battery cell
technology
XALT Energy, OneD Material, 3M Company, PSU, DENSO
Low-cost processing researchJCI, Miltec UV International,
×Applied Materials
Applied Materials
is exhibiting at the
IDTechEx Show!
Santa Clara Convention Center, CA, USA
15 - 16 Nov 2017
Applied Materials,
Optodot Corporation, Navitas Advanced Solutions
Group LLC
Battery
testing
analysis and
design
Cost assessments and
requirements analysis
Battery testing activities
Battery analysis and design activities
ANL (2 projects), NREL

ANL, INL, SNL, NREL
NREL (5 projects) ORNL, SNL, EC Power
Applied
battery
research for
transportation
Core and enabling support facilities
Critical barrier focus - enabling high energy, high voltage lithium-ion batteries
Next-generation lithium-ion chemistries "improvements in cell chemistry, composition and processing"
ANL (3 projects), SNL
ANL (3 projects)

ANL, 3M, Farasis Energy, Envia-LBNL-ORNL-GM, PSU, TIAX LLC
BatteryProcess development and manufacturing R&D with US industryANL (2 projects), ORNL (2 projects), NREL
International, Amprius, Parthian Energy, Sila
Nanotechnologies
Advanced
battery
materials
research
(BMR)
Advanced electrode architectures
Silicon anode research
High energy density cathodes for advanced lithium-ion batteries
Electrolytes for high voltage, high energy lithium-ion batteries
Diagnostics

Modelling advanced electrode materials
Metallic lithium and solid electrolytes


Lithium sulfur batteries
Lithium-air batteries
Sodium-ion batteries
LBNL (3 projects), HydroQuebec, MIT
PNNL, Stanford U, NREL
ORNEL (2 projects), Binghampton U, PNNL, BNL, ANL (2 projects), UTA (2 projects) LBNL
ANL

LBNL (3 projects), BNL, PNNL, ANL, U Cambridge, UCSD, UC Berkeley
LBNL (2 projects), MIT, TAMU, GM, MSU, BYU
ORNL (2 projects), University of Michigan, University of Maryland, Stanford University, PNNL, Dalkin America, Wildcat Discovery Technologies
U Pittsburgh, LBNL, ANL, BNL, PNNT, Stanford U, TAMU
PNNL, Liox Power, ANL, BNL, UWM
BNL

Vehicle Systems (VS)

The VS mission is to accelerate the market introduction and penetration of advanced vehicles and systems that significantly impact petroleum displacement, GHG reduction, and vehicle electrification goals. VS performs systems engineering to develop and evaluate advanced vehicle systems and infrastructure. In support of VTO technology target requirements analysis, VS tools are used to predict vehicle-level and national-level energy and environmental performance metrics (including petroleum use, infrastructure economics, and greenhouse gas emissions). In support of parasitic load reduction technology design and development the tools are used to predict energy savings from novel approaches and new technologies. VS performs benchmarking of advanced vehicles and component technologies to evaluate the potential for significant improvements over current technologies. VS works with industry partners to accurately measure real-world performance of advanced technology vehicles using a testing regime developed in partnership with industry stakeholders. Baseline performance testing, fleet testing and accelerated reliability testing are carried out. Table 4 contains an overview of projects in each of the VS project areas for FY 2015. Detailed information on individual VS projects appears in the current VS Annual Progress Report 9.

VS groups its projects into focus areas that implement its systems engineering processes. In FY 2015, these focus areas were vehicle modelling and simulation, vehicle technology evaluations, codes and standards, industry projects, and vehicle systems efficiency improvements. Projects within each focus area typically produce outputs in one or more of the following forms: system designs, vehicle demonstrations, data, analysis, reports, tools, specifications, and procedures. As is typical of systems engineering work, the outputs from one task are often used as the inputs for one or more tasks in other focus areas. The performance of systems engineering addressing integrated vehicle systems performance for vehicle classes from light-duty (LD) to heavy-duty (HD) is unique to the VS program and critical to the VTO mission.
Project AreaProject TopicParticipants
Industry
Awards
Advanced vehicle testing and evaluation (AVTE)
Wireless power transfer
Thermal load reduction
Powertrain
Friction and wear
SuperTruck
Tires
Zero emission cargo transport
Intertek Testing

ORNL, Hyundai America
MAHLE Behr Troy (2 projects), Hamon Systems, NREL
Eaton Corp (2 projects)
Ricardo Inc
Navistar, Daimler Trucks, Volvo
Goodyear, PPG Industries
South Coast AQMD (2 projects), Houston-Galveston Area Council
Vehicle technology evaluations
Modelling and simulation
Codes and standards
Vehicle systems efficiency improvements
ANL, INL, ORNL, NREL (11 projects)
ANL (8 projects), NREL (5 projects), ORNL (2 projects)
ANL (2 projects), INL, ORNL, PNNL
ANL (5 projects) INL (2 projects), LBNL, NREL (2 projects), ORNL (3 projects)

Recent Highlights

The following is a brief summary of key highlights for HES-funded R&D technical accomplishments resulting from R&D funded by HES. Greater details on each project (as well as on other projects not listed here) are available in the VTO annual progress reports for the corresponding subprogram see 6, 8, or 9.

Electric Drive Vehicle Market

U.S. Electric Drive Vehicle Sales
The U.S. represents the world's leading market for EVs and is producing some of the most advanced PEVs available today. Consumer excitement and interest in PEVs is growing, with sales continuing to increase, despite the recent drop in gasoline prices. In 2012, PEV sales in the U.S. tripled, with more than 50,000 cars sold. In 2013, PEV sales increased by 85% with over 97,000 vehicles sold. In 2014, PEV sales further increased by 20%, with annual sales of over 118,000 PEVs. In 2015, PEV sales remained steady with annual sales of 115,000 PEVs, even though oil prices have remained relatively low for the whole year.

Commercial Applications of DOE-supported Technologies
The 2015 DOE PEV Battery Cost Reduction Milestone of $275/kWh has been accomplished. DOE-funded research has helped reduce the current cost projection (from three DOE-funded battery developers) for a 40-mile range PHEV battery (PHEV-40 battery) to an average $264 per kilowatt-hour (of useable energy). This cost projection is derived by using the value for material costs and cell and pack designs as provided by those developers, which are then input into ANL's peer-reviewed public domain model "Battery Production and Cost (BatPaC)". The cost projection assumes a production volume of at least 100,000 batteries per year. The battery cost is derived for batteries that meet DOE/USABC system performance targets. The battery development projects usually focus on high voltage and high capacity cathodes, advanced alloy anodes, and processing improvements. DOE's goals are to continue to drive down battery cost to $125/kWh by 2022.

Electric Drive Technologies

Ribbon Electrical Interconnects to Enable Increased Current Density in Power Electronics
NREL, in collaboration with Kulicke & Soffa, confirmed that ribbon electrical interconnects display good reliability and allow for high-current-density power electronics packaging. A transition from round wire interconnects to ribbon interconnects allows for higher current densities, lower parasitic inductances, and lower loop heights. This transition is essential for the larger transition to wide bandgap devices. An insulated gate bipolar transistor (IGBT) with wire interconnects from a 2012 Nissan Leaf inverter is shown in Figure 3. A representation of ribbon interconnects at equivalent current density results in a 40% reduction in required bondable area.

Figure 3: IGBT with wire interconnects (left) and ribbon interconnects (right).
Ribbon interconnects exhibited similar reliability to wire interconnects under thermal aging, cycling, and corrosion tests. Minimizing span length is key to maximizing the lifetime of ribbon interconnects under vibration conditions. This work validates and supports the shift to ribbon interconnects as a route to enable high-current-density packaging and wide-bandgap-device-based components.

Thermal Stackup to Enable the Full Potential of WBG Devices
The power module is the heart of power electronics and its thermal stack up is the second most important determining factor in performance and second only to the device itself. Joints of the thermal stack up are critical to reliability and thermal performance. Current state-of-the art interconnects are primarily soldered or brazed. New sintered-silver technology holds promise, but the ability to consistently and effectively create them is not well understood. The goal of this ORNL research, funded jointly with VTO's propulsion materials program, is to determine all the elements needed to produce a consistent and reliable sintered joint. One pathway to hasten sintered-silver utilization is to fundamentally prove its anticipated higher reliability. ORNL developed custom sintered test coupons whose thermal cycling testing are providing needed data for this (Figure 4). ORNL is processing and characterizing the sintered-Ag coupons while NREL is performing thermal cycling (e.g., -40 to 170°C) to excite failure mechanisms.

Integrated WBG Onboard Charger and DC-DC Converter
Stand-alone onboard battery chargers (OBC) and 14V DC-DC converters used in current PEVs are bulky, costly and have a relatively low efficiency (85-92%) due to limitations of current semiconductor and magnetic materials. This project leapfrogs the present silicon (Si) - based charger technology by using WBG silicon carbide (SiC) devices; advanced magnetic materials; and a novel integrated charger architecture and control strategy. ORNL has developed a new bidirectional integrated OBC and DC-DC converter architecture that reduces the number of components significantly (a 47% reduction in power circuit components alone, not counting savings in the gate driver and control logic circuits, translating to 50% reduction in cost and volume compared to existing standalone OBCs). ORNL has built and tested an all-SiC 6.8 kW bidirectional OBC prototype that integrates a 6.8 kW isolation converter into a 100 kW segmented traction inverter (Figure 5). ORNL has also developed a control strategy for the charger isolation converter to reduce the battery ripple current of twice the AC main.

Next Generation Inverters
GM collaborated with ORNL, NREL, and some other technology and equipment suppliers to develop its next generation inverter which achieved DOE's 2020 traction inverter power density target of 13.4kW/L and specific power target of 14.1kW/kg. Further, scaled up to its highest power configuration, it was projected to meet DOE's 2020 cost target of $3.30/kW with 100,000 units annual volume (assuming GM's internal cost targets for the components and other manufacturing targets could be achieved). The performance of the inverter prototype (Figure 6) was verified under active load in GM's dynamometer lab.

Advanced Batteries

Commercial Applications
Several technologies developed under partially VTO-sponsored projects have moved into commercial applications. HEVs on the market from BMW and Mercedes are using lithium-ion technology developed under DOE projects with Johnson Controls Inc. (JCI). JCI will also supply such batteries to Land Rover for hybrid drive sport utility vehicles. Also, lithium-ion battery technology developed at LG Chem partially with DOE funding of a USABC project is being used in GM's Chevrolet Volt extended-range electric
vehicle (EREV), the Cadillac ELR EREV, the Chevy Bolt EV, and the Ford Focus EV battery. LG Chem will also supply lithium-ion batteries to Eaton for hybrid drive heavy vehicles.

Novel and Inexpensive Manufacturing Process
24M is developing a novel and inexpensive manufacturing process that requires fewer unit operations for a higher process yield and results in electrode and stacked cell fabrication taking 80% less time compared to conventional methods. The semisolid electrodes require no drying activity and no organic solvents. The process is able to make thick electrodes (200-1,000 microns), increasing the energy density and potentially reducing the cost of stacked cells. Their enhanced areal capacity (i.e., the amount of capacity/energy stored per unit area of the electrode) is two to four times higher than conventional electrodes.

Next Generation Battery Materials
ANL teamed with Strem Chemicals, a manufacturer/distributor of specialty chemicals, to develop certain next-generation battery materials. Strem licensed 23 separate intellectual property (IP) items from ANL and will distribute 9 battery solvents and additives via its own networks. All materials were invented at ANL's Electrochemical Energy Storage Center and scaled at its Materials Engineering Research Facility (MERF).

Internal Short Circuit (ISC) device
NREL developed and patented an internal short circuit (ISC) device to emulate defects that cause short-circuits and thermal runaway failure in lithium-ion cells. The intent of the device is to enhance the design of lithium-ion batteries by testing ISC effects. The device is made from small discs of copper and aluminum, a copper puck, separator, and thin layer of wax and it can be placed in any location within a cell to produce four different types of shorts. Upon implantation in a cell, heating melts the wax layer, which is wicked away, allowing the metal components to come into contact and induce an ISC. NREL delivered over 300 ISC devices to NASA and some industry partners for evaluating abuse tolerance of new cell designs and materials. (See Figure 8.)
Variable Frequency Microwave (VFM) Drying Technology
Lambda Technologies is developing variable frequency microwave (VFM) drying technology which employs penetrating energy that selectively targets the solvent in the entire volume of the wet electrode. (In contrast, convection dryers only heat the electrode surface and solvent removal proceeds layer by layer which takes much longer.) VFM is estimated to result in a 30-50% reduction in the operating cost of the electrode drying procedure. This process has been applied to NMC electrodes placed into graphite/NMC cells by the partner, Navitas Systems. The cycle life for these cells was not any different from those from traditional drying. In addition, this technique would potentially permit the drying of much thicker electrodes than at present.

New Disordered Rock-Salt Material with Lithium-excess
MIT designed, prepared, and tested a new disordered rock-salt material with lithium-excess, Li1.25Nb0.25Mn0.5O2. It shows a high capacity of 287 mAh/g and specific energy density of 909 Wh/kg (vs. 650Wh/kg for the best current cathodes) in the first cycle at 55°C. Combined in situ x-ray diffraction (XRD) and electron energy loss spectroscopy (EELS) measurements indicate that Mn and O both reversibly contribute to the charge transfer with oxygen providing almost half of that capacity. Together with previous work on understanding lithium transport in lithium-excess and disordered materials, this material is an important new direction to create high capacity cathode materials. (See Figure 9.)

High-capacity Prelithiation Reagent
Stanford University developed LixSi-Li2O core-shell nanoparticles (NPs) as a high-capacity prelithiation reagent to compensate the first cycle irreversible capacity loss of various anode materials, such as Si. LixSi NPs were synthesized by mechanical stirring of a mixture of Si NPs and lithium metal at elevated temperature inside argon atmosphere. A dense passivation layer is formed on the LixSi NPs after exposure to trace amounts of oxygen, preventing the LixSi from further oxidation in dry air. First cycle voltage
profiles of Si NPs/LixSi-Li2O composite and Si NPs show that the incorporation of this prelithiation reagent compensates the capacity loss of Si NPs. The composite shows an initial loss of only 10%, whereas the Si NPs show an initial loss of 30%. (In full cells, that initial loss of lithium must be compensated by excess cathode, which effectively reduces the cell energy.)

DOE R&D Funding Awards
In January 2015, DOE released a funding opportunity announcement (FOA) that solicited proposals in the areas of advanced light-weighting, advanced battery development, power electronics, advanced combustion technology, and natural gas utilization in transportation. In September 2015, DOE announced the selection of 24 new projects (worth nearly $55 million) to develop and deploy cutting-edge vehicle technologies thatwill strengthen the U.S. clean energy economy. Through the Advanced Vehicle Power Technology Alliance with DOE, the Department of the Army is contributing an additional $2.26 million in co-funding to projects focused on battery modelling technologies and computational fluid dynamics. Specifically, in the area of advanced batteries, 10 projects totaling $26.1 million were awarded for existing and next-generation battery material manufacturing processes, advances in electrode and cell fabrication manufacturing, and electric drive vehicular battery modelling for commercially available software. In January 2015, VTO issued an "Incubator" FOA, which would support innovative technologies and solutions that could help meet existing goals that are not represented in a significant way in the EERE offices' existing Multi-Year Program Plans (MYPPs) or current R&D portfolios. In august 2015, 8 new "incubator" projects (worth $10.4 million) were selected, of which 3 projects were in the advanced battery area (worth $3.3 million).

Vehicle Systems
A partial snapshot of VS project highlights for FY 2015 is provided in Table 5. These accomplishments are intermediate steps to realizing the potential real world benefits of advanced vehicle systems technologies. More detailed information on those projects appears in the subprogram's annual progress report 9.
Member
Daimler TrucksSuperTruck project team demonstrated 115% improvement in vehicle freight efficiency (12.2 mpg average).Far exceeded the SuperTruck Project's goal to improve freight efficiency by 50%.
INLPublished PEV and Infrastructure Analysis Report addressing driving and charging behaviour throughout the US ad five multi-year demonstrations of PEVs and charging infrastructure.Analysis of the largest PEV and charging infrastructure demonstrations ever conducted (2010-2015).
INLCompleted first-of-a-kind benchmark testing on the efficiency and power quality of plug-in electric vehicle charging systems.Help industry accelerate vehicle and charging equipment product development and understand potential impacts of vehicle/grid power quality interaction.
NRELPrototyped a novel big data analytical methodology to estimate fuel savings of "off cycle" technologies.Facilities adoption of fuel and CO2 reduction technologies. This methodology provides a way to objectively quantify the aggregate benefit of such technologies to inform claims for new earned "off-cycle" credits.
ANLDeveloped and demonstrated a Common Integration Platform (CIP), a universal electronic module with embedded open source software to connect EVSE and other device to the grid.The CIP is an enabling technology to support grid integration studies. The studies will demonstrate it as a common interface for communication between and integrated control of grid-connected devices.
ANLInvented several test method approaches for finding the maximum powertrain.Public and independent data to support the SAE Vehicle Powertrain Power Rating.

Conclusions

DOE Vehicle Technologies R&D activities for hybrid electric systems are focused on electric drive technologies, advanced batteries, and vehicle systems for transportation applications and currently emphasize PEVs. The past successful commercialization of DOE-funded batteries is a testimony to the success already achieved by its cooperative programs. Future advances in HES technologies will be leveraged with progress in other enabling technologies (e.g., heat engines, lightweight materials, and fuels) to accomplish challenging VTO goals. The Program will continue to reassess longer-term candidate technologies for propulsion systems promising performance, life, and cost benefits.

References

1 Vehicle Technologies Office, Vehicle Technologies Multi-Year Program Plan, 2011-2015
18.
2 Howell, D., An Overview of Current U.S. DOE Hybrid Electric Systems R&D Activities, the 28th International Electric Vehicle Symposium and Exhibition (EVS28), Goyang, Korea, May 3-6, 2015.
3 Howell, D., Current Fiscal Year (2012 - 2013) Status of the Hybrid and Electric Systems R&D at the U.S. -DOE, the 27th International Battery, Hybrid and Fuel Cell Electric Vehicle Symposium (EVS27), Barcelona, Spain, November 17-20, 2013.
4 Howell, D., Hybrid and Electric Systems R&D at DOE: Fiscal Year 2011-2012 Status, the 26th International Battery, Hybrid and Fuel Cell Electric Vehicle Symposium (EVS26), Los Angeles, California, May 6-9, 2012.
5 U.S. Council for Automotive Research, USABC Goals and Requirements, http://uscar.org/guest/article_view.php?articles_id=85, accessed on 2016-03-18.
6 Vehicle Technologies Office, Energy Storage R&D, Fiscal Year 2015 Annual Progress Report, U.S. Department of Energy, Washington, DC, March 2016.
7 The EV Everywhere Grand Challenge Blueprint, http://energy.gov/eere/vehicles/downloads/ev-everywheregrand-
challenge-blueprint, accessed on 2016-03-18.
8 Office of Vehicle Technologies, Electric Drive Technologies R&D, Fiscal Year 2015 Annual Progress Report, U.S. Department of Energy, Washington, DC, March 2016.
9 Office of Vehicle Technologies, Vehicle Systems R&D, Fiscal Year 2015 Annual Progress Report, U.S. Department of Energy, Washington, DC, March 2016.
10 U.S. Council for Automotive Research, USABC Manuals, uscar.org/guest/article_view.php?articles_id=86,accessed on 2016-03-18.
11 United States Advanced Batteries Consortium, USABC Electric Vehicle Battery Test Procedure Manual, Rev. 2, U.S. D.O.E., DOE/ID 10479, January 1996., http://avt.inl.gov/battery/pdf/usabc_manual_rev2.pdf
12 U.S. Department of Energy, PNGV Battery Test Procedures Manual, Rev. 2, August 1999, DOE/ID-10597,http://avt.inl.gov/battery/pdf/pngv_manual_rev3b.pdf
13 U.S. Council for Automotive Research, RFP and Goals: Advanced Battery Development for PEVs,
http://www.uscar.org/, accessed on 2016-03-18.
